Công ty chuyên phân phối card kỹ xảo Blackmagic Design chính hãng bảo hành 12 tháng full box, mới 100% giá rẻ tại TPHCM.
Công ty sẵn sàng giao đến nơi cho quý khách kiểm tra hàng mới 100% trước khi thanh toán.
Bán Blackmagic Design giá rẻ tại TP.HCM, hàng chính hãng giá tốt, bảo hành 12 tháng, có chứng nhận C.O;C.Q
Qúy khách vui lòng gọi trực tiếp: Ms Trinh: XXX để có giá tốt nhất ngay thời điểm mua hàng.
Chi tiết sản phẩm:
Description

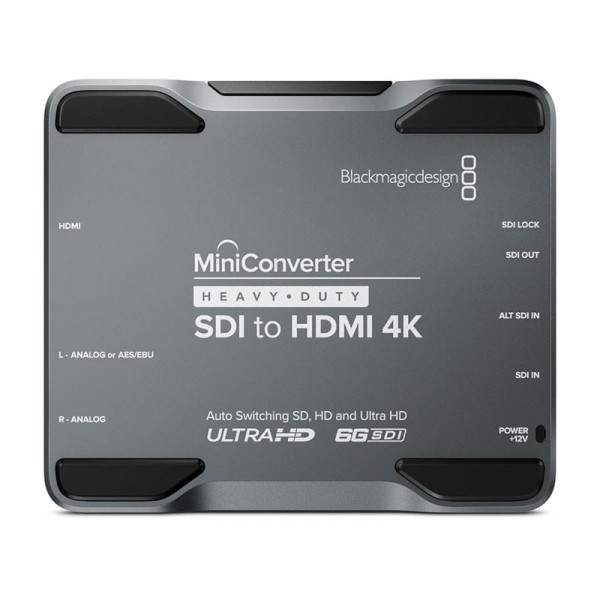

Convert SDI in SD, HD and Ultra HD to HDMI 4K with analog and AES/EBU audio. Heavy Duty Mini Converters are machined from a solid block of aircraft grade aluminum so they are super tough and durable enough to be used in the most demanding live production and outside broadcast environments.

https://s3.nhattao.com/users/2016/07/6581149_8039e59cf59aXXXc36f343d4c_thumb.jpgTHÔNG SỐ KỸ THUẬT:

• SDI Video Input: 1 x SD, HD or 6G-SDI.
• Video Output: 4K HDMI output only.
• HDMI: HDMI type A out.
• SDI Redundant Input: Automatically switches over if main SDI input is lost.
• Multi Rate Support: Auto detection of SD, HD or 6G-SDI.
• Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
• Reclocking: Yes

Standards

• SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
• HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
• 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M.
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition Level B 3G-SDI and 6G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
• HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
• HDMI Color Space: YUV and RGB
• HDMI Color Precision: 4:2:2 and 4:4:4

Software

• Software Control: Mac OS X™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.

Settings Control

• Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 5.2 Watts
• Operational Voltage Range: 12 - 30 V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Mini Converter Heavy Duty SDI to HDMI 4K
• Software CD
• 12V universal power supply with international socket adapters

Warranty

• 1 Year Limited Manufacturer's Warranty.
