Chuyên phân phối card kỹ xảo Blackmagic Design Mini Converter SDI to HDMI chính hãng giá rẻ.
Bán Blackmagic Design Mini Converter SDI to HDMI giá rẻ tại TP.HCM, hàng chính hãng giá tốt, bảo hành 12 tháng.
Liên hệ Ms Tiên XXX. để được tư vấn và hỗ trợ.

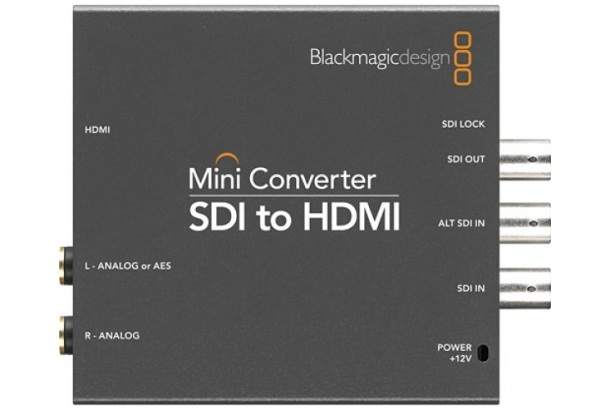

Blackmagic Design Mini Converter SDI to HDMI

Chuyển đổi từ SDI sang video HDMI với âm thanh HDMI nhúng, thêm vào là tính năng cân bằng âm thanh raAES/EBU hoặc Analog. Với thiết bị này, bạn hãy tưởng tượng mình đang sử dụng TV màn hình lớn và máy chiếu hay màn hình video phát sóng!Thật là dễ dàng để kết nối nhiều thiết bị hiển thị có cổng HDMI tới các kết nối SDI.

Build your SDI studio with the most advanced converters
Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There are now 10 great models to choose from. Choose from models with analog, HDMI, audio, optical fiber, up, down, cross conversion and sync generation!

High Quality SDI
Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analog video and audio for a true broadcast quality solution. You also get the latest broadcast technology such as re-clocking and 3 Gb/s SDI. Mini Converters feature a unique redundant input for mission critical tasks. Connect a redundant cable to the second input, and if the main SDI input is lost, Mini Converters will automatically switch over in an instant. A loop-through SDI output is also provided for connecting to other devices.

AES/EBU and Analog Audio
Most Mini Converters feature 24 bit analog and 24 bit digital audio and HDMI models support HDMI audio. Unlike other converters you don't need custom audio cables and the standard 1/4 inch audio jacks switch between balanced analog audio or AES/EBU digital audio.

New 3 Gb/s SDI Technology
With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that's future proof. Upgrades can be loaded via the USB connection for future video format compatibility.

Auto Switching SD and HD
Mini Converters instantly switch between all SD and HD video formats whenever the video input changes. A huge range of standards are supported including NTSC, PAL, 1080i/59.94, 1080i/50, 1080PsF/23.98, 720p/59.94, 720p/50 and new formats can be added via USB.

Redundant SDI Input
Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events. You can connect a redundant cable to the second input, so if the main input is lost due to cable damage or any other cause, Mini Converter will automatically switch over to the redundant input cable. This lets you use Mini Converters in locations where crowds or the environment might cause cable damage, or lets you place Mini Converters in hard to reach locations such as roof mounted video projectors. A loop though SDI output is also provided for connecting to other devices. A loop-thru SDI connection is also great if you need more than 2 audio channels, as you can connect the loop-thru to another Mini Converter to de-embedd extra audio channels!

Hardware Down Converter
If you connect to analog SD equipment then you'll know how hard it is when modern SDI equipment unexpectedly changes between SD and HD. Mini Converter SDI to Analog includes an automatic high quality down converter that supports letterbox, anamorphic 16:9 and center cut 4:3.

International Power Supply
Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure!

Easy to Change Settings
With Blackmagic Design's Mini Converters, it's as simple as using a pen to change settings. Settings vary between models, and include settings such as AES/EBU or analog audio, analog video connections, and more. All Mini Converters are similar, so they're super easy to understand and use. With advanced 3 Gb/s SDI technology, every Mini Converter is fully compatible with your SD and HD equipment, and can be updated via USB. Use our Converter Utility to make adjustments right from your laptop.



Tech Specs
Connections
SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
HDMI HDMI out
SDI Video Outputs Automatically matches the SD, HD and 3 Gb/s SDI video input.
Analog Video None
Optical Fiber Video Input None
Optical Fiber Video Output None
Optical Fiber Audio Input None
Optical Fiber Audio Output None
Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input Automatically switches over if main SDI input is lost.
Reference Input None
Multi Rate Support Auto detection of HD or standard definition SDI inputs.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Re-clocking Yes
Standards

ASI Support None
SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color Space YUV
Analog Color Precision 4:2:2
HDMI Format Support 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60.
HDMI Color Precision 4:2:2 and 4:4:4
HDMI Color Space YUV and RGB
Copy Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP.
Extras

Software Control Mac OS X™ and Windows™ software upgrade via USB.
Settings Control Mini Switches or USB software.
Firmware Upgrade Via included firmware updater application.
Format Conversion None
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
110 Volt Power Consumption 82 mA
220 Volt Power Consumption 41 mA
Operational Voltage Range 12V
