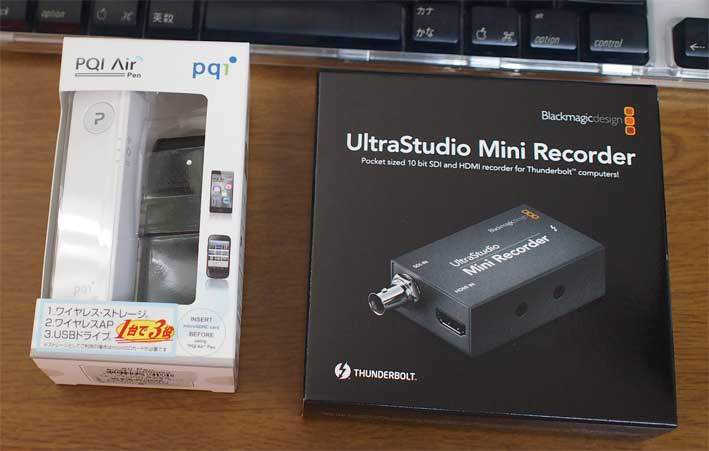

The UltraStudio Mini Recorder that fits in your pocket, UltraStudio Mini Recorder is super tiny and includes just SDI and HDMI connections, plus Thunderbolt. Simply plug in and record from any SDI and HDMI device for the most incredible portable solution.
Advanced Workflow
The UltraStudio Mini's are the solution you need when doing SD and HD work that demand quality. If you're editing with Avid Media Composer, Final Cut Pro or Premiere Pro then you get high quality and an extremely portable design, perfect for editing on location. UltraStudio takes care of moving your media in and out of your computer so it's perfect for modern file based workflows. UltraStudio is powered via the Thunderbolt connection so it powers from your laptopbattery.
If you're traveling light, then UltraStudio Monitor is the ideal solution for monitoring when editing and it's smaller than your phone.
Attractive Portable Design
UltraStudio Mini Recorder and Monitor include only a single HDMI and SDI connection each so they are the tiniest way to capture and playback video available.
World's Highest Quality Connections
UltraStudio is the perfect capture and playback device for your work now and well into the future. Simply choose between UltraStudio Mini Recorder or UltraStudio Mini Monitor depending on your needs. Connect all your I/O devices with SD/HD-SDI, HDMI with 8 channels of embedded audio. SDI and HDMI are fully digital connections and are amazing quality.
HDMI is fantastic for low cost HD monitoring as it's on all good modern TVs and video projectors.
The Power of Thunderbolt™
Built on revolutionary Thunderbolt™ technology, UltraStudio has a blazingly fast 10 Gb/s connection that’s up to 20 times faster than USB 2.0. That’s enough bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization, making the UltraStudio ideal for demanding HD work. Thunderbolt also has the power budget to allow UltraStudio to operate from the Thunderbolt connections, so it can operate from your laptop battery, perfect for on location or remote areas. UltraStudio makes it easy to work with all the video formats you need, conveniently on your desktop or notebook computer.
Unmatched Quality
Now you can handle any job your client presents to you, from TVC to feature films. UltraStudio operates with both compressed and uncompressed video, so it can handle anything and you're not locked into a single codec quality. When working with uncompressed video, all captured images are a perfect pixel-for-pixel clone of the source, without any generational loss or damaging compression, so you have the confidence you’re working at the absolute highest quality possible! Get the sharpest green screens, cleanest compositions, superior colour correction and more! With mature drivers, award winning Media Express software, attractive design, and the highest quality video.
Advanced Video Technology
UltraStudio Mini models might be low cost, but they include the same advanced video technology that other companies charge tens of thousands of dollars for. You get low jitter SDI video that meets broadcast specifications and instantly switches between standard definition and high definition. That means you can use it for anything. The included HDMI connections adhere to the latest versions of the HDMI standard so you eliminate HDMI incompatibilities. Both SDI and HDMI include multiple channels of embedded audio as well as ancillary data such as RP-188.
Features:
- SDI and HDMI capture
- Thunderbolt™ Connection
Get blazing speeds for full resolution real time dual stream 3D capture and playback- Portable solution
Specifications
SDI Video Input: 1x 10-bit SD/HD switchable
HDMI Video Input: 1x HDMI type A connector
SDI Audio Input: 8 channels embedded in SD and HD
HDMI Audio Input: 8 channels embedded in SD and HD
Computer Interface: Thunderbolt
SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
SDI Compliance: SMPTE 259M and SMPTE 292M
SDI Metadata Support: VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning
Sampling: Video: 4:2:2
Audio: Television standard sample rate of 48 kHz at 24 bit
Color Precision: 10-bit
Color Space: REC 601, REC 709
HDMI Configuration: HDMI automatically configures to connected display
HDMI Resolution: Pixel for pixel HD resolution input to connected device
HDMI Color Precision: 10-bit
Multiple Rate Support: SDI and HDMI are switchable between standard definition and high definition
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources
Always confirm copyright ownership before capture or distribution of content
Colorspace Conversion: Hardware based real time
HD Down Conversion: Software based down conversion during video playback
Real Time Effects: Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects
Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation: Requires computer with a Thunderbolt port
System Compatibility: Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later.
