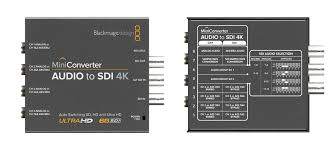

Blackmagic Mini Converter Audio to SDI 4K
CHI TIẾT SẢN PHẨM:
Description
Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

THÔNG SỐ KỸ THUẬT:
SDI Video Input 1 x SD/HD/3G/6G-SDI
1 x SD/HD/3G/6G-SDI-SDI redundant input
SDI Video Output 1 x SD/HD/3G/6G-SDI
Audio Input 4 x 1/4" jacks
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio
Multi-Rate Support Auto detection of SD, HD, 2K, UHD, and 4K signals
Reclocking Yes
Format Support SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 23.98/24/25/29.97/30
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, 3G, and 6G-SDI
SDI Auto Switching Automatically detects SD, HD, 3G, or 6G-SDI
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling 24-bit, 48 kHz
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
Settings Control DIP switches or USB software for Mac OS X and Windows
Firmware Upgradeable Via USB 2.0
Power Supply 12 VDC
Power Consumption 8.4 W
Operational Voltage Range 12 to 31 VDC
Operating Temperature 32 to 104° F (0 to 40 ° C)
Storage Temperature -4 to 113° F (-20 to 45 ° C)
Relative Humidity 0 to 90% non-condensing
Dimensions 4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm)
Weight 7.61 oz (215.74 g)
