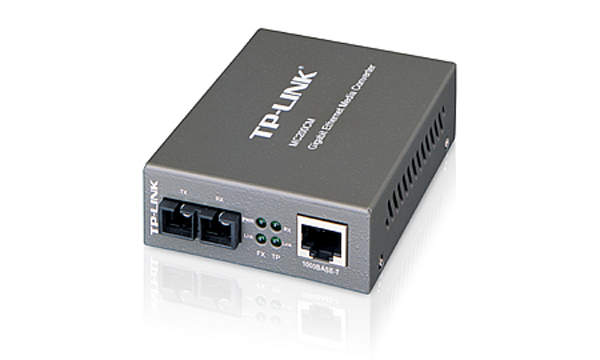

Gigabit Multi-Mode Media Converter MC200CM
http://thietbiquang.net/userfiles/MC200CM-01.jpg

Overview

What This Product Does
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

Features

• Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
• Supports auto MDI/MDIX for TX port
• Provides switch configuration of Force /Auto transfer mode for FX port
• Extends fiber distance up to 0.5km
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply
