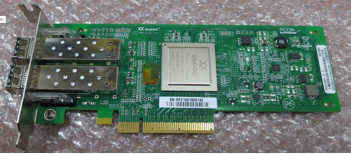

- Qlogic QLE2562 Dual 8GB/s 8Gbps Fibre Channel Host Bus Adaptor PCI-e x8 8GB FC

Software Environments
Windows
Linux Red Hat® AS 4.7, 5.2
Novell® SLES 10 SP2
Vmware® ESX Server 3.5 and 3i
Hardware Environments
IA32 (x86), IA64, Intel® 64
AMD™ Opteron64
Sun™ SPARC®
Management
Management Tools:
SANsurfer® FC HBA Manager SANsurfer FC HBA CLI
Device Utilities:
Utilities for flashing boot code Linux scripting tools
Boot support:
BIOS, Fcode, UEFI, EFI
APIs:

SNIA HBA API V2, SMI-S, FDMI

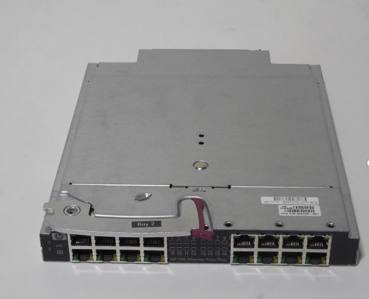

-HP XXX Ethernet pass-thru 16-Port 1Gbps Module
Device Type: Expansion module - 16 ports
Form Factor: Plug-in module
Width: 92.8 cm
Depth: 27.9 cm
Height: 26.8 cm
Catalogues
Product Catalogues: gigabit-card
Environmental Parameters
Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 5 - 95%
Expansion / Connectivity
Interfaces: 16 x network - Ethernet 1000Base-TX - RJ-45
Compatible Slots: 1 x Expansion Slot
Connections: 16 x network - Ethernet 1000Base-TX - RJ-45

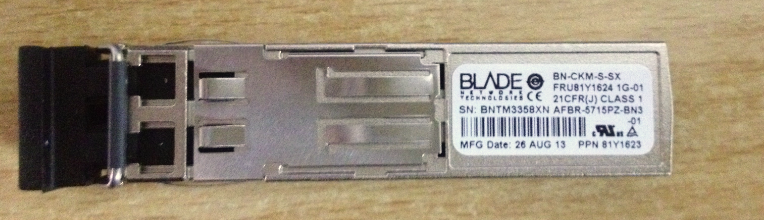

- IBM BNT SFP SX Trasceiver 1G
Features and Benefits
Features Benefits
Affordable Lower your capital budgets
Reliable Quality assured by BLADE Network Technologies’ test labs to work with BLADE-designed Ethernet switches
Excellent 1000BASE-SX performance Robust Gigabit link performance in challenging thermal environments up to 45°C
Small SFP package Optimal performance in port dense environments
Specifications
Item Description
Hardware supported Designed to fit into the data uplink ports for BLADE Network Technologies Gigabit Ethernet switches supporting 1000BASE-SX: + BLADE RackSwitch G8000 + BLADE RackSwitch G8124 + BNT Virtual Fabric 10G Switch Module for IBM BladeCenter
Form Factor 8.5 mm x 13.4 mm x 56.5 mm
Laser Classification Contains a Class 1 LED of 850 nm
Standards Compliance IEEE 802.3z 1000BASE-SX compliant
Link distance Spans to 550 meters with 50/100 micron multi-mode cable

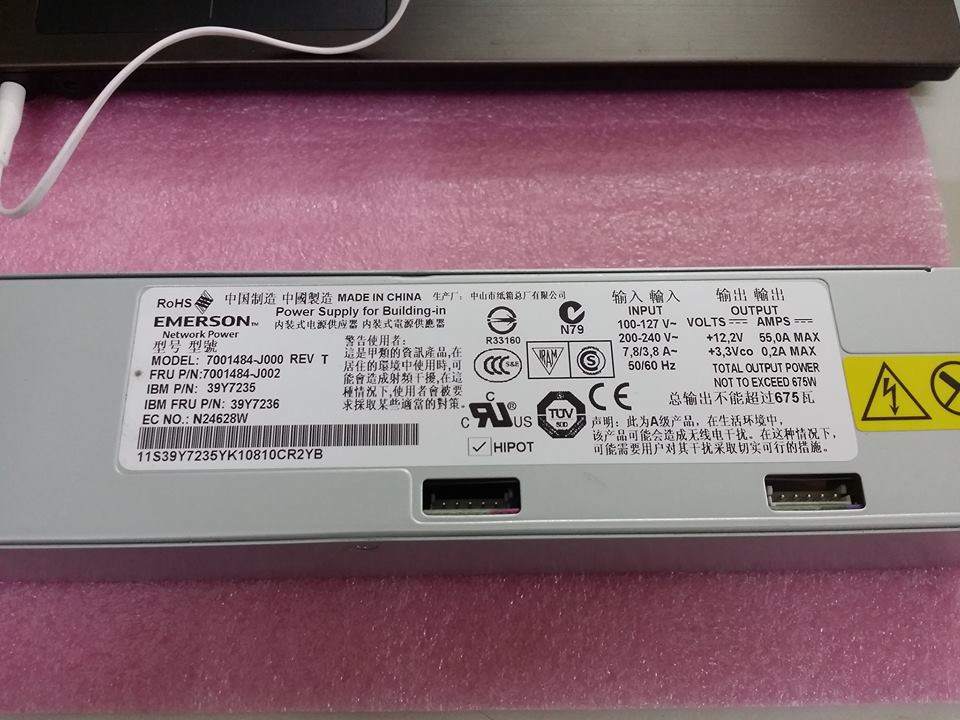

- Nguồn máy chủ IBM x3550M3
