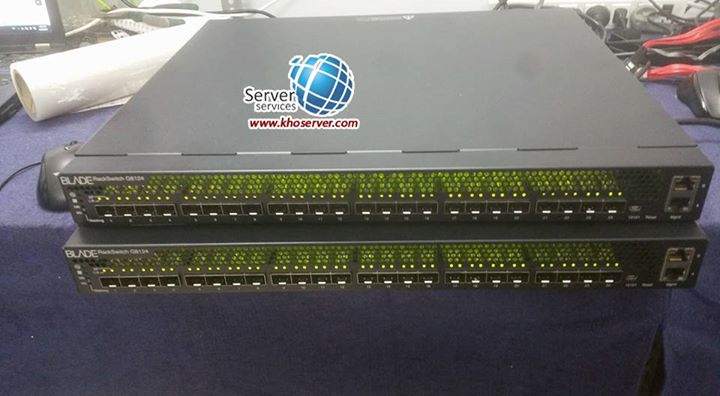

Thông số kỹ thuật Switch quang IBM G8124E 24 port SFP+
Performance: 100% line-rate performance Ultralow latency of 570 nanoseconds 480 Gb non-blocking switching throughput (full duplex)

Interface options: Twenty-four 10 G SFP+ fiber connectors
2 × 10/100/1000 Ethernet RJ45 and 1 mini-USB port for management

Form factor: 1U

Dimensions: 17.3″ wide, 15″ deep, 1U high

Weight: 6.40 kg (14.08 lb)

Airflow: Front-to-rear or rear-to-front cooling. Variable speed fans automatically adjust as needed, helping to reduce energy consumption.

Power: The AC-powered G8124E has dual load-sharing internal power modules, 50 - 60 Hz, 100 - 240 V AC auto-switching per module.
The nominal power for AC models ranges from 115 W to 168 W depending upon the speed of the port (1 Gb/10 Gb), type of transceivers (SR or DAC) and number of active ports.
