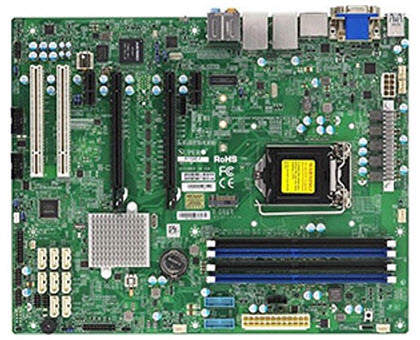

SUPERMICRO SERVER BOARD X11SAE
Key Features
1. Single socket H4 (LGA 1151) supports :Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
4. 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT Single GbE LAN with Intel® i219LM
6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
7. I/O: 2x COM, TPM header
8. 2x SuperDOM with built-in power
9. 6x USB 3.0 (2 rear + 4 via header) 8x USB 2.0 (2 rear + 6 via headers) 2x USB 3.1 (10Gbps, rear)
Chi tiết và giá cả xin liên hệ :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x11sae
SUPERMICRO SERVER BOARD X11SAE-F
1. Single socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC, UDIMM DDR4 2133MHz; 4x DIMM slots
4. 2x PCI-E 3.0 x16 (run at 16/NA or 8/8), 2x PCI-E 3.0 x1, and 2x 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
7. I/O: 1x VGA, 2x COM, TPM header
8. 2x SuperDOM with built-in power
9. 6x USB 3.0 (2 rear + 4 via header) 6x USB 2.0 (2 rear + 4 via headers) 2x USB 3.1 (10Gbps, rear)
Chi tiết và giá cả xin liên hệ :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x11sae-f
SUPERMICRO SERVER BOARD X11SAE-M
1. Single socket H4 (LGA 1151) supports : Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
4. 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4 and 1x 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM
6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280/22110)
7. I/O: 1x COM, TPM header
8. 2x SuperDOM with built-in power
9. 6x USB 3.0 (2 rear + 4 via header) 6x USB 2.0 (2 rear + 4 via headers) 2x USB 3.1 (10Gbps, rear)
Chi tiết và giá cả xin liên hệ :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x11sae-m
SUPERMICRO SERVER BOARD X11SAT
1. Single socket H4 (LGA 1151) supports , Intel® Xeon® processor E3-1200 v5 , Intel® 6th Gen. Core™ i7/i5/i3 series
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC , UDIMM DDR4 2133MHz; 4x DIMM slots
4. 3x PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT , Single GbE LAN with Intel® i219LM
6. 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
7. I/O: 1x COM, TPM header
8. 2x SuperDOM with built-in power
9. 6x USB 3.0 (2 rear + 4 via header) , 4x USB 2.0 (2 rear + 2 via header) , 1x USB 3.1 (10Gbps) Type C ports , (rear, share with Thunderbolt and display port)
10. M.2 NGFF connector
Chi tiết và giá cả lien hệ :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x11sat

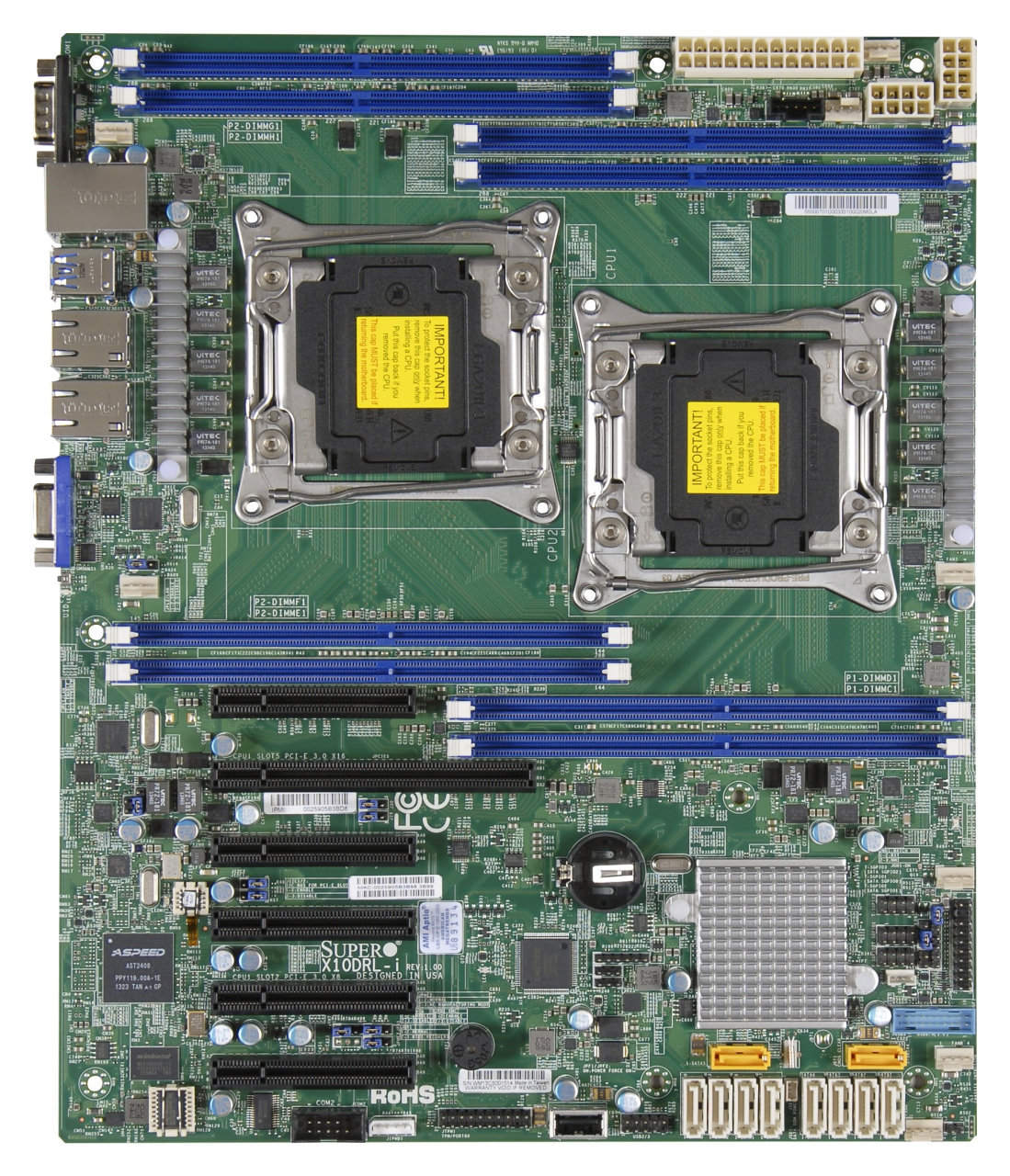

SUPERMICRO SERVER BOARD X10DRL-I
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/v4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 512GB ECC DDR4 2133MHz; 8x DIMM sockets
4. 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x16, 1 PCI-E 2.0 x4 (in x8)
5. Intel® i210 GbE LAN, 2 ports
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
8. 4x USB 3.0 (2 rear, 2 via header); 5x USB 2.0 (2 rear, 2 via header, 1 Type A)
Chi tiết và giá cả xin lien hệ tại đây:
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10drl-i
SUPERMICRO SERVER BOARD X10DAI
1.Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/v4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
4. 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot
5. Intel® i210 Dual port GbE LAN
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
7. 6x USB 3.0 (4 rear, 2 via header); 5x USB 2.0 (2 rear, 2 via header, 1 Type A)
8. 7.1 HD Audio with optical S/PDIF
9. Thunderbolt Add-On Card support
Chi tiết và giá cả xin lien hệ tại đây :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10dai
SUPERMICRO SERVER BOARD X10DRI
1.Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/v4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
4. 3 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8
5. Intel® i350 Dual port GbE LAN
6. 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5x USB 3.0 (2 rear, 2 via header, 1 Type A), 6x USB 2.0 (2 rear, 4 via header)
Chi tiết và giá cả xin liên hệ tại đây:
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10dri
SUPERMICRO SERVER BOARD X10DRI-T
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
4. 3 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8
5. Intel® X540 Dual port 10GBase-T
6. 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5x USB 3.0 (2 rear, 2 via header, 1 Type A), 6x USB 2.0 (2 rear, 4 via header)
Chi tiết và giá cả xin lien hệ tại đây:
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10dri-t
SUPERMICRO SERVER BOARD X10DRH-I
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/v4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
4. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
5. Intel® i350 Dual port GbE LAN
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5x USB 3.0 and 4x USB 2.0 ports
Chi tiết và giá cả xin lien hệ tại đây :
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10drh-i
SUPERMICRO SERVER BOARD X10DRH-IT
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3/v4 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
4. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
5. Intel® X540 Dual port 10GBase-T
6. 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5x USB 3.0 and 4x USB 2.0 ports
Chi tiết & giá cả xin lien hệ tại đây:
http://maychuchuyendung.vn/san-pham/supermicro-server-board-x10drh-it
